Remote Control of Zone Volume and Seletion of BGM Source
– Independent Local MIC and BGM Inputs
– Source Designation
– Convenient Installation and Construction without ID Setting (Auto Addressing)
– RS-422 Communication between L-500 and Z-500
– Weight: 1.6kg/3.5Ib
– Dimensions (W-H-D): 70-114-60mm/2.8-4.5-2.4in

HI DEFINITION PRODUCT

Audio mixer
9 channel mixer, including:
6 balanced channels Mic/Line with Phantom power supply.
3 stereo channels.
Stereo balanced output.
Mono balanced input.
Rec stereo unbalanced output.
First channel priority of MIC/LINE with Talkover adjustment.
3 band equalizer.
DC 24 V secondary power supply connexion (emergency, back-up).

Expansion unit to add 8 additional remote station notification system 6000. Ability to prioritize (default: 1CH> …> 8CH)

Backed by the combined technological prowess of multiple HARMAN brands, the JBL Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.

Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.

They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz.
Plus, they’re built using HARMAN’s GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.

4 or 8 inputs with 1 or 2 channel outputs
Fanless, space-saving 1U design
Independent base/treble controls
Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
Sleek industrial look with illuminated rings making them easy to see and use
Configurable output routing (2 channel models only)
Supports JBL CSR-V wall controller via Ethernet cable
Priority muting, VOX ducking, and phantom power for all models

The Scarlett OctoPre is the ideal 8-channel expansion for any Scarlett – or other digital interface with ADAT inputs. ADAT is a simple and easy way of increasing the number of simultaneous recording channels available in your studio. With eight channels of Focusrite’s 2nd generation Scarlett preamps and precision A-D conversion at sample rates up to 192 kHz, Scarlett OctoPre is the ideal way of increasing the number of inputs in your studio. It also offers eight balanced line outputs, sourced directly from their respective mic preamps for use on stage in a live environment.

Eight natural-sounding 2nd generation Scarlett mic/line inputs deliver high headroom, plenty of clean gain, low noise and minimal distortion ? ideal for tracking drums as well guitars, keyboards, vocals and more. The front panel features two newly-designed instrument inputs with extended headroom. ADAT outputs let you connect to any interface or digital system with ADAT optical inputs, and analogue line outputs let you feed an analogue console at the same time as recording with the digital outputs.

Key Features
Eight natural-sounding 2nd generation Scarlett mic preamps
Eight balanced line inputs
Focusrite precision A-D conversion up to sample rates of 192 kHz
Dual front-panel instrument inputs
Pad on every channel for extra headroom – ideal for loud sources such as drums
Eight balanced line outputs – ideal for live use
Accurate 5-segment LED input metering
Simple ADAT connectivity via optical cables
48V Phantom power available on every channel for condenser mics
State-of-the-art digital clocking with Word Clock I/O for synchronisation with external devices

The JBL Commercial CSM-32 offers fixed I/O, pre-configured architecture, full stereo or mono operation, flexible routing and control of multiple audio sources, simple front-panel configuration and control without the need for a computer, compatibility with the CSR wall controllers, compatibility with the CSPM paging microphones, and optional duplication of audio channels to another device via a Cat5 cable.

The CSM-32 features three stereo music inputs with gain control and clip LEDs, and two stereo outputs with active crossovers and dedicated subwoofer outputs.

System Controller 6000 (System Controller), which allows complete control system from a remote PC via network. Operation PX / PS / RG / ES / TB, 10 extensions and can seat 160. Save macro Fire / RM PC to internal memory.

The VP-2064 Power Amplifier features a 60 W-by-4 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.

Spec Power Source 28 V DC
Current Consumption (EN60065) 4.8 A in total
Rated Output Power 60 W x 4
Output Voltage/Impedance 100 V/167 ohms, 70 V/83 ohms, 50 V/41 ohms
(selectable by the internal wiring change)
Number of Channels 4
Input Specified by input module VP-200VX
Number of Module Slots 4, usable module: VP-200VX
Output Power amplifier output (speaker line):
M3.5 screw terminal, distance between barriers: 8.8 mm
Frequency Response 40 – 16,000 Hz, +/-3 dB (at 1/3 rated output)
Distortion Under 1% (at rated output, 1 kHz)
S/N Ratio Over 80 dB
Dimensions 482 (W) x 88.4 (H) x 340.5 (D) mm

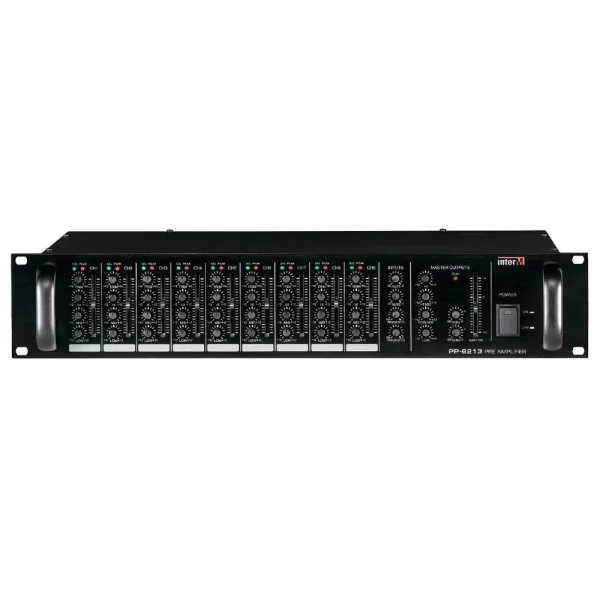

The Inter-M PP6213 Mic / Line / Aux Mixer is ideal as part of a multi-channel public address / 19” rack system.

With Inputs 1 and 2 featuring Priority Override and Ducking over Channels 3~9, the new PP-6213 supports paging override in large scale background music systems such as restaurants, supermarkets & retail or transportation terminals, for instance.

Channel Inputs 1 and 2 also feature phantom power for use with condenser microphones. All 9 inputs feature low, mid and high EQ for individual tone control per input device.

Video matrix

Mixer amplifier 6 inputs (mic / line) and power 120W/4O/100V with option 5 zones switcher. Protection against overheating, overcurrent and short circuit output. It has a built in media player that allows playback of MP3 / WMA / WAV via the USB port on the front, and support with streaming audio online (RJ-45) in networks LAN, WAN & TCP / IP or RTSP. Display all parameters color screen LCD 2.8”. Dimensions 420 (W) x 88 (H) x 328 (B) mm. Weight: 6,7 kg.
