Luxman L-509Z Black Edition CENTENNIAL

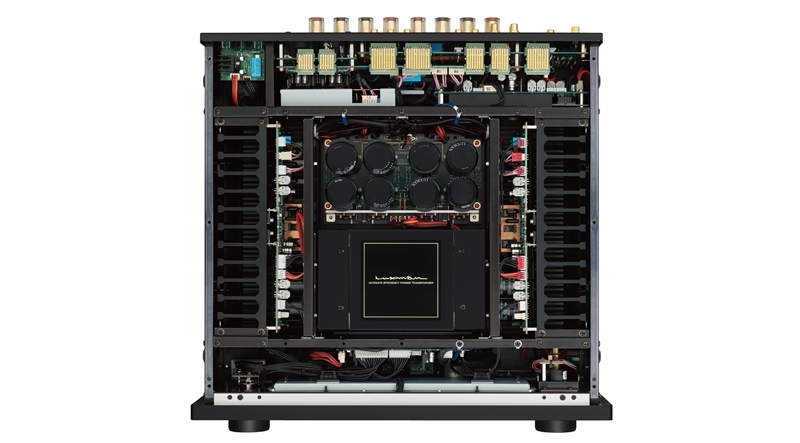

The L-509Z is a new model and “range topping flagship” of our latest Z-series integrated amplifiers. This “single-chassis separates” concept with high-end sound challenges the performance of stand-alone pre-amps and power amps, having undergone an astonishing evolution from earlier L-509 models. At the heart of the amplifier is our newly developed “LIFES” amplification feedback engine and it is the first to be equipped with a discrete circuit configuration for each of the pre and power sections, bringing an overwhelming power of expression to bear for the new generation. In terms of functionality, it is equipped with a 7-segment LED volume level display, a built-in phono amplifier with a 3-stage gain switching circuit and an additional MIDDLE tone that is useful for adjusting the vocal range. The substantial chassis incorporates many design features from our ultimate M-10X power amplifier including the thick alloy top panel with hairline finish and ventilation ports.

SPECIFICATIONS

Rated output                                  120 W+120 W (8 Ω) / 240 W+240 W (4 Ω)

Input sensitivity / impedance       PHONO (MM) 2.5 mV / 47 kΩ,

                                                           PHONO (MC-H) 0.3 mV / 100 Ω,

                                                           PHONO (MC-L) 0.1 mV / 40 Ω, LINE 180 mV / 47 kΩ

Total harmonic distortion              0.006% (1 kHz / 8 Ω), 0.06 % (20 Hz to 20 kHz / 8 Ω)

S/N ratio                                           LINE 106 dB or more

Frequency response                     LINE 20 Hz to 150 kHz (within -3 dB)

Power consumption                      390 W, 130 W (no signal), 0.4 W (at standby)

Dimensions                                    440 (W) x 193 (H) x 463 (D) mm

Weight2                                            9.4 kg
