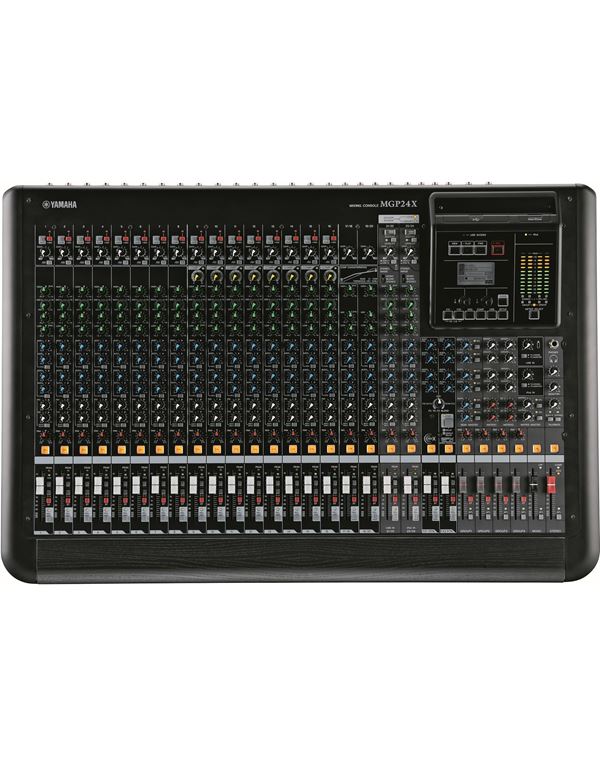

Αναλογική Κονσόλα με Effect,κατάλληλη για πλήθος εφαρμογών (DJ’s, PA, ζωντανές εμφανίσεις κτλ.). Διαθέτει 16 Mic Inputs με 48V Phantom Power και HPF ανά κανάλι, 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, 1 Mono out.
| Mixing capability | Mixing channels | 24 Line Inputs (16 mono and 4 stereo) |
|---|---|---|
| GROUP | 4 GROUP Buses + ST Bus | |
| AUX | 6 AUX Sends + 2 FX Sends | |
| MATRIX | 1 Matrix out | |
| On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) | |
| I/O | Mic inputs | MIC: 16 (INPUTS HPF: 100Hz 12dB/oct) |
| Phantom power | 48V phantom power per channel | |
| Line inputs | LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo | |
| Digital I/O | USB Device, iPod / iPhone |
| Total harmonic distortion | 0.02% (20Hz-20kHz@ +14dBu) | |
|---|---|---|
| Frequency response | +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz | |
| Hum & noise level | Equivalent input noise | -128 dBu Equivalent Input Noise |
| Residual output noise | -94 dBu Residual Output Noise | |
| Crosstalk | -74dB @ 1kHz | |
| Power requirements | 100-240V 50Hz/60Hz | |
| Power consumption | 86W max | |
| Dimensions | W | 819mm (32.2′) |
| H | 169mm (6.7′) | |
| D | 565mm (22.2′) | |
| Net weight | 15.5kg (34.2lb) | |
