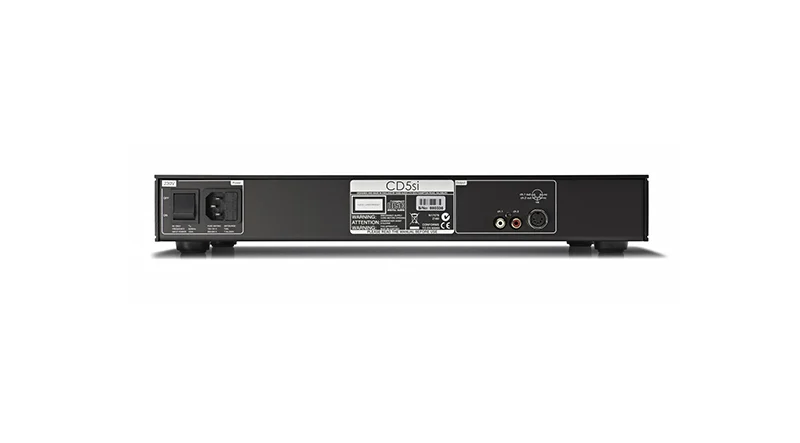

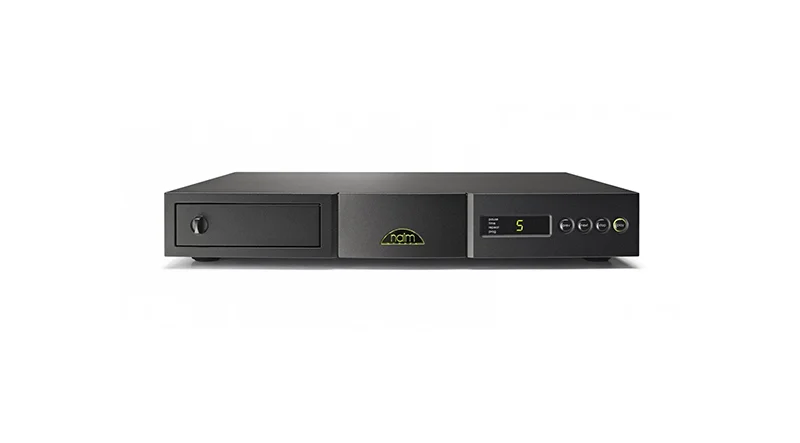

Naim CD 5si

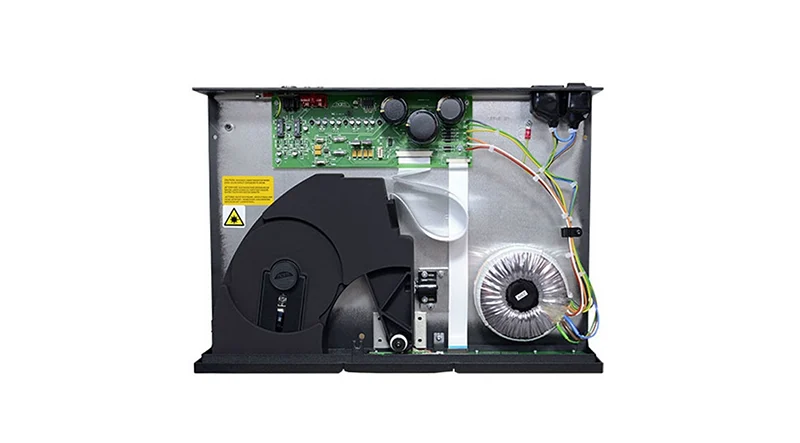

The CD5si name may only differ from its CD5i predecessor by one character, but under the skin there’s numerous fundamental improvements and advances – each one aimed at extracting more music and enjoyment from every CD. To begin with, the CD5si digital to analogue converter chip has been upgraded to a Burr Brown PCM1793 – a device very closely related to the one used in the NDX high-end streaming player. The CD5si also benefits from a more stable DAC clock, higher voltage power supply rails, a revised analogue filter design and a brand new CD transport and laser optics. All these changes were driven by our relentless search for engineering reliability and sound quality, and the benefit of each change was confirmed after many hours of listening.

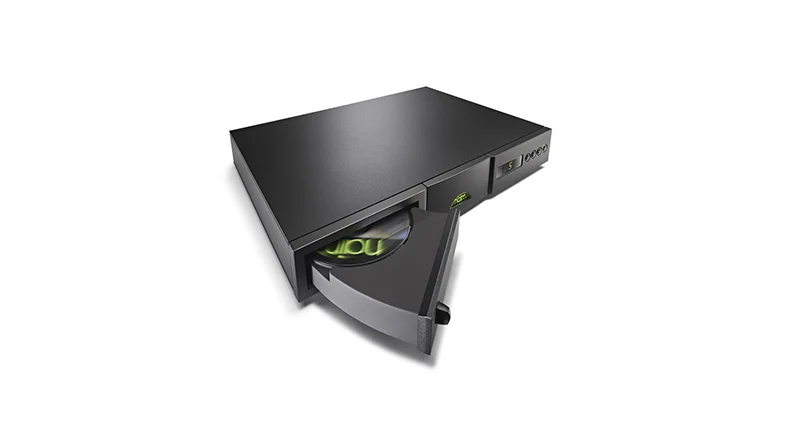

However, just as change can bring improvement, there’s often nothing wrong with sticking to your guns, so the CD5si retains all of its predecessor’s best features and Naim Audio trademarks. The unique Naim Audio swing-out CD drawer, laser tracking and digital error correction software, discrete analogue output electronics, and a die-cast, non-magnetic enclosure construction that helps ensure the electronics within can extract the most music possible from every CD.

Audio Outputs:

• De-emphasis: ±0.1dB referred to main response
• Line Outputs Fixed (level): 2.1V RMS at 1kHz
• THD + N: <0.007%, 10Hz – 20kHz at full level
• Load Impedance: 10kΩ (min.)
• Output Impedance: 10Ω (max.)
• Analogue: DIN, RCA
• Frequency Response: 10Hz – 20kHz, -0.6dB at 20Hz

Formats:

• CD Formats: Red Book
• Disc Compatability: CD, CD-R

Physical:

• Weight: 5.9 kg
• Dimensions (HxWxD): 70 x 432 x 301 mm

Power:

• Power Consumption: 9VA (stop mode), 12VA (play mode), 16VA (peak)
• Supply Voltage: 100V, 115V, 230V; 50 or 60Hz

Supplied with:

• Supplied with: NARCOM-5 Remote Control, Standard Interconnect, Power-Line Lite mains cable (UK denominations only)

User Control:

• Front Panel: Four button matrix
• Handheld: Remote handset
• Remote Control: Infra Red (RC5)
